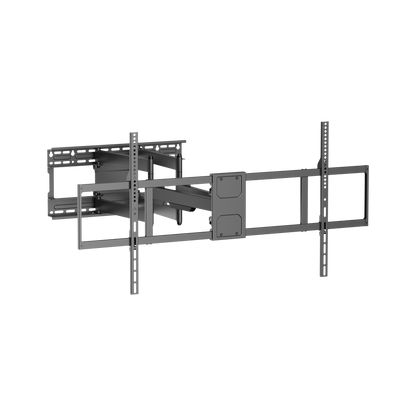

Ultra Heavy-Duty Full Motion TV Wall Mount | TVB-144

Wolff Mount Ultra Heavy-Duty TV Wall Mount: Up to 140 inch (Full Motion, 125 kg)

The Wolff Mount TVB-144 is a professional-grade, heavy-duty wall mount engineered specifically for exceptionally large screens ranging from 60 to 140 inches. Combining a reinforced steel frame with a sophisticated full-motion design, this mount is one of the most powerful and versatile solutions available on the market today. Whether it is for a high-end home cinema, a corporate boardroom, or digital signage in a showroom, the TVB-144 provides the stability and reach required for premium AV installations.

Unmatched Reach and Flexibility

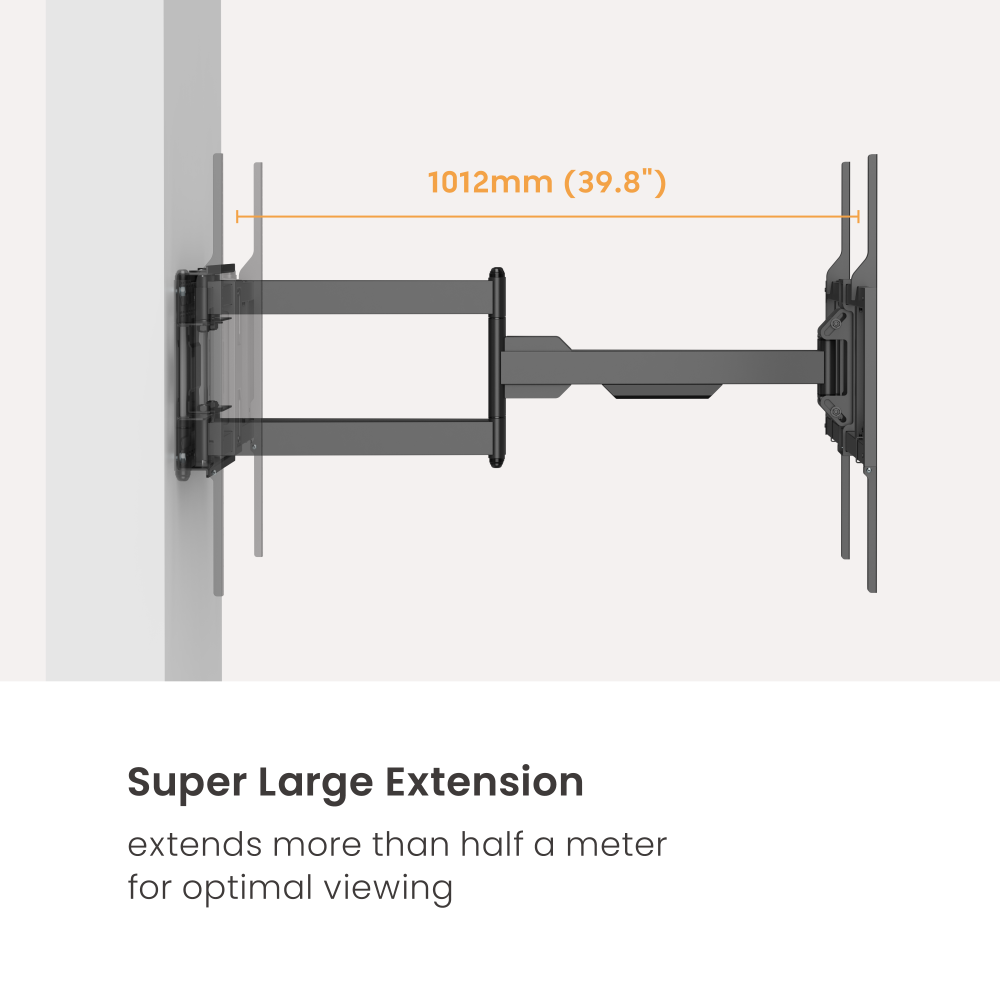

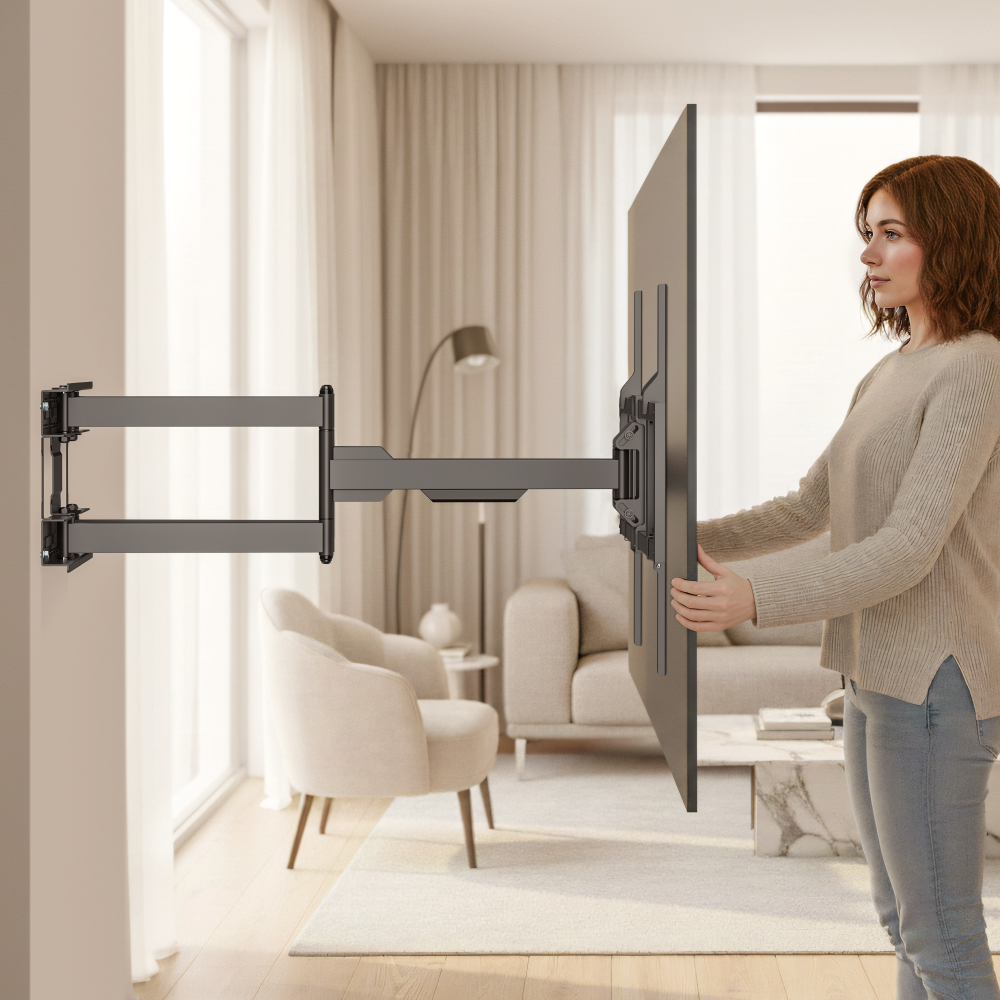

What sets the TVB-144 apart is its impressive ultra-reach dual-arm design. The extension arm can pull your display up to 1 meter (1012 mm) away from the wall without compromising stability. This allows even the largest televisions to be swiveled and angled toward different viewing positions in a room. When not in use, the mount retracts to a low profile of just 78 mm, keeping the screen close to the wall for a clean, professional appearance.

Heavy-Duty Engineering

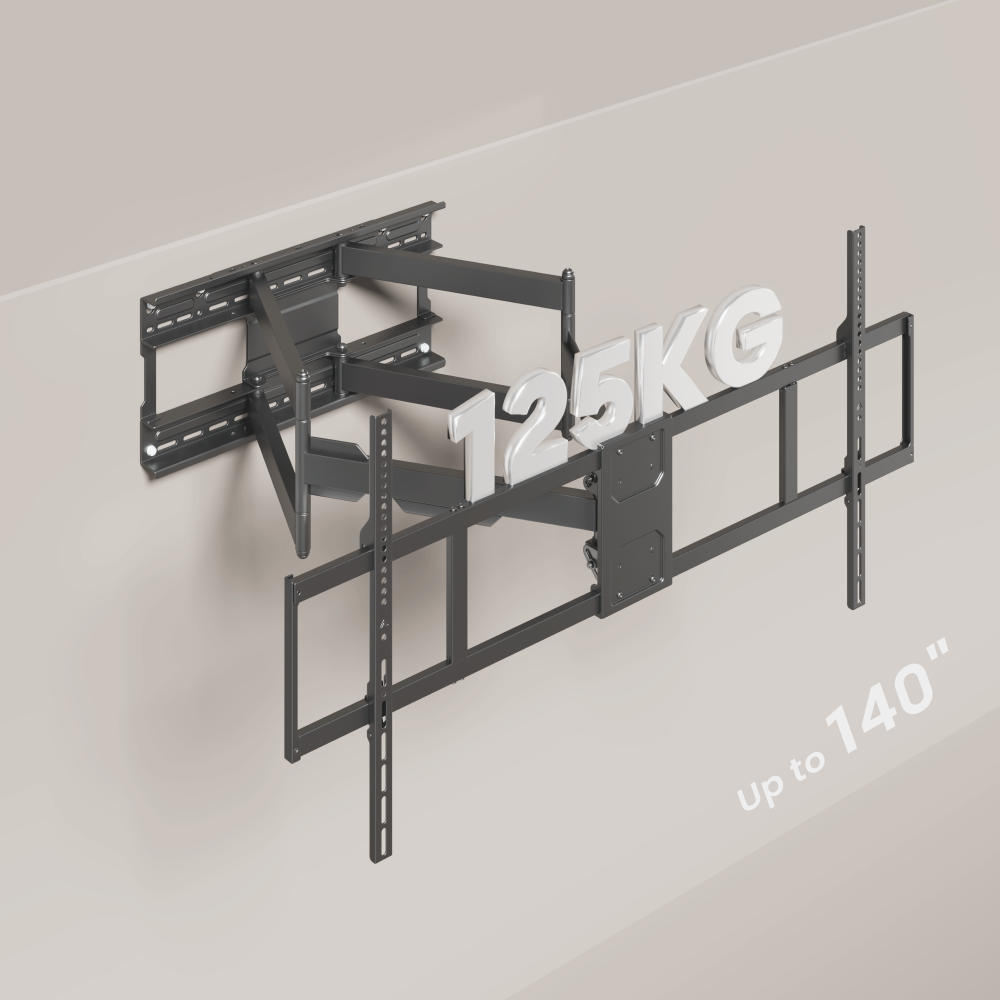

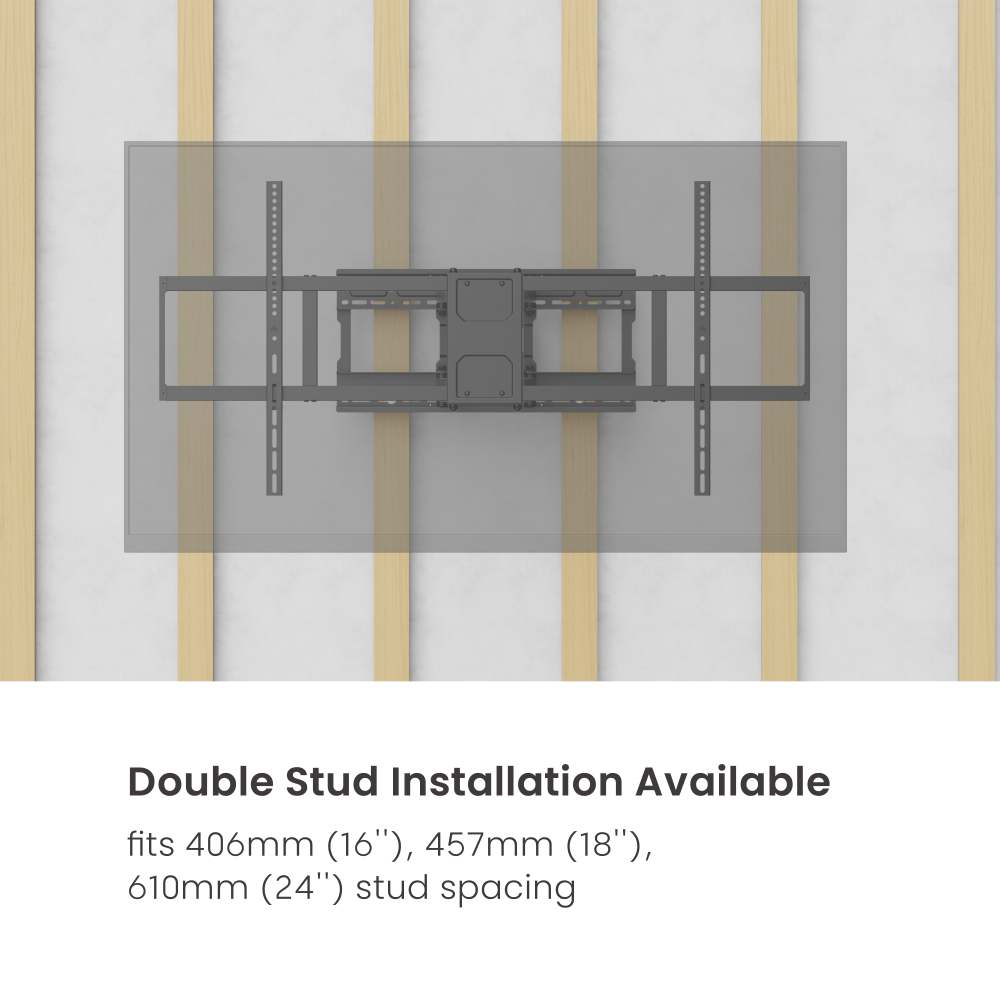

Designed to support a massive weight capacity of 125 kg, the construction utilizes 3 mm thick steel for the wall plate and 2 mm cold-rolled steel for the arms. To ensure absolute safety, the unit has been strength-tested to three times its rated load. The extra-wide wall plate is specifically designed for double-stud mounting, distributing the weight evenly across two wooden studs or a solid concrete wall. This ensures your investment remains secure even when the arms are fully extended.

Precision Viewing Angles

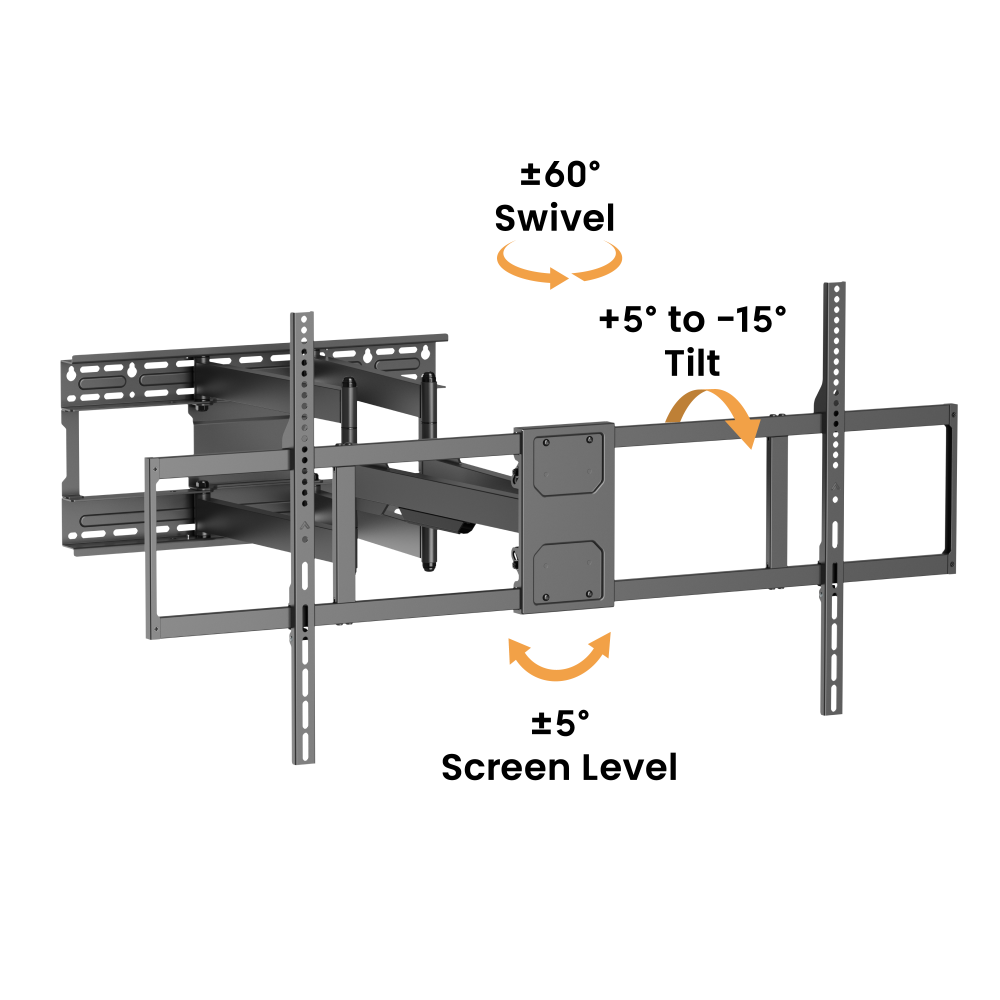

Achieving the perfect view is effortless thanks to the full-motion mechanics. You can tilt the screen between +5° and -15° to eliminate glare, swivel it 60° in either direction, and utilize the +/-5° horizontal leveling feature to ensure the screen is perfectly straight after installation. It is fully compatible with both flat and curved displays and supports VESA patterns up to 1200x600.

Streamlined Installation

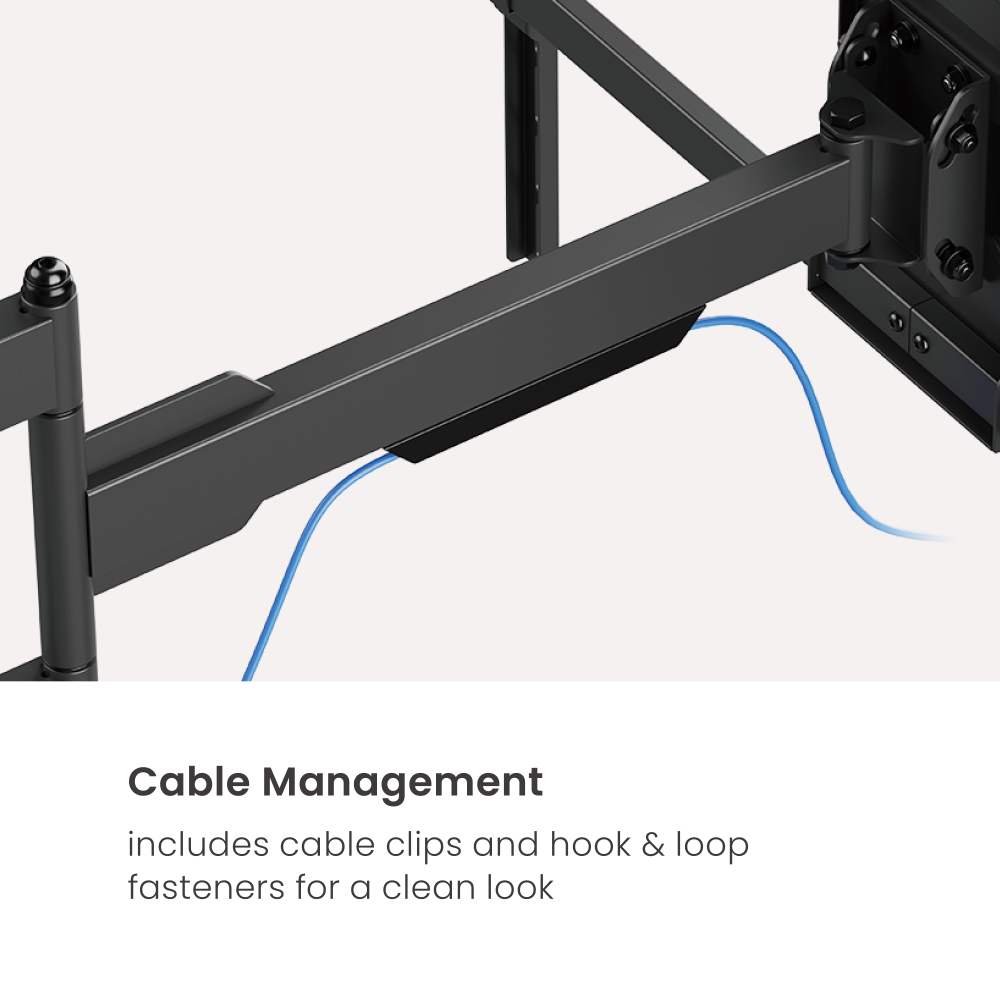

Despite its 25 kg weight, the TVB-144 is designed for a straightforward setup. The integrated cable management system keeps power and HDMI cords tucked away, while the included mounting kit features a spirit level and clear direction indicators. Finished in a durable black powder coating, this mount is built to withstand the demands of both residential and commercial environments.

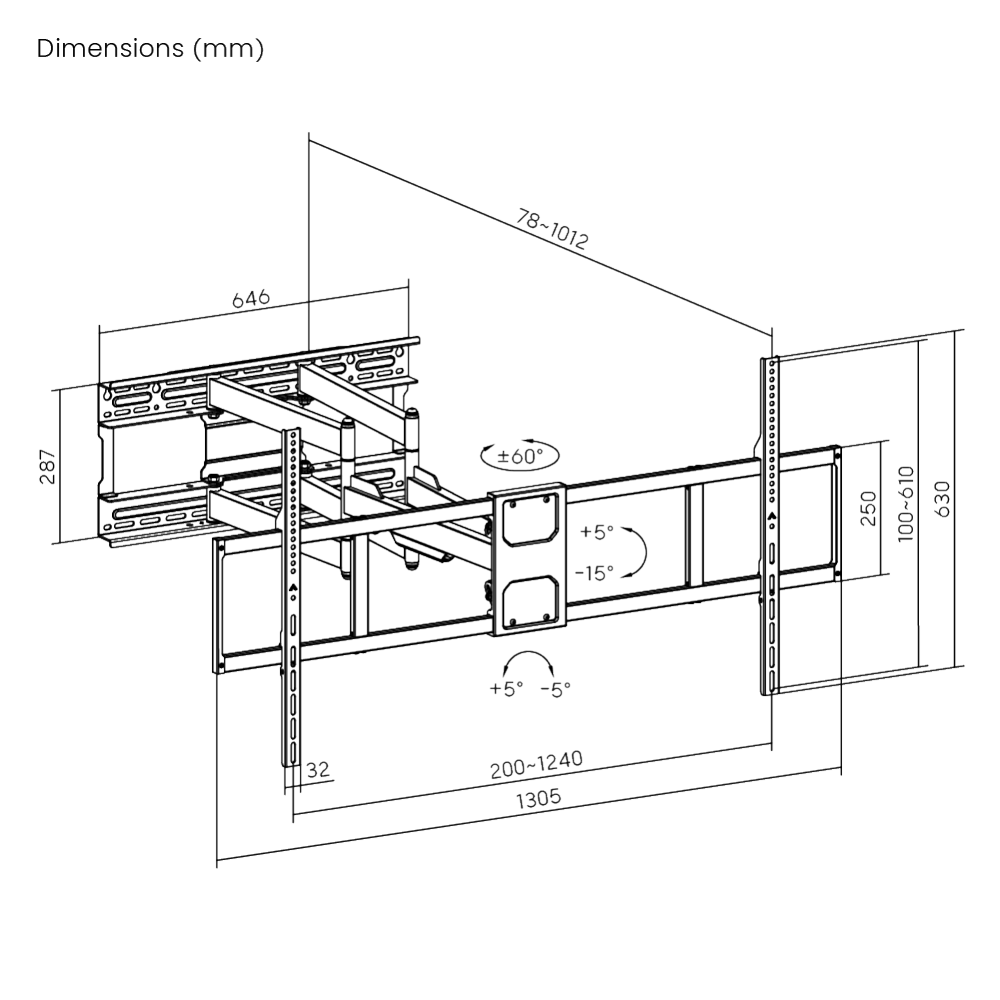

Technical Specifications

• Compatibility: 60 – 140 inch screens (Flat & Curved)

• Max Load: 125 kg

• VESA Range: 400x400 up to 1200x600

• Wall Distance: 78 mm to 1012 mm

• Movement: Swivel (±60°), Tilt (+5°/-15°), Leveling (±5°)

• Material: High-grade steel with black powder coating

• Mounting: Double stud or solid masonry
